MACHINING

GRINDING

We deliver high accuracy and surface finish. Our equipment fleet supports surface and cylindrical grinding of parts of any complexity.

PLACE AN ORDERarrow_forward

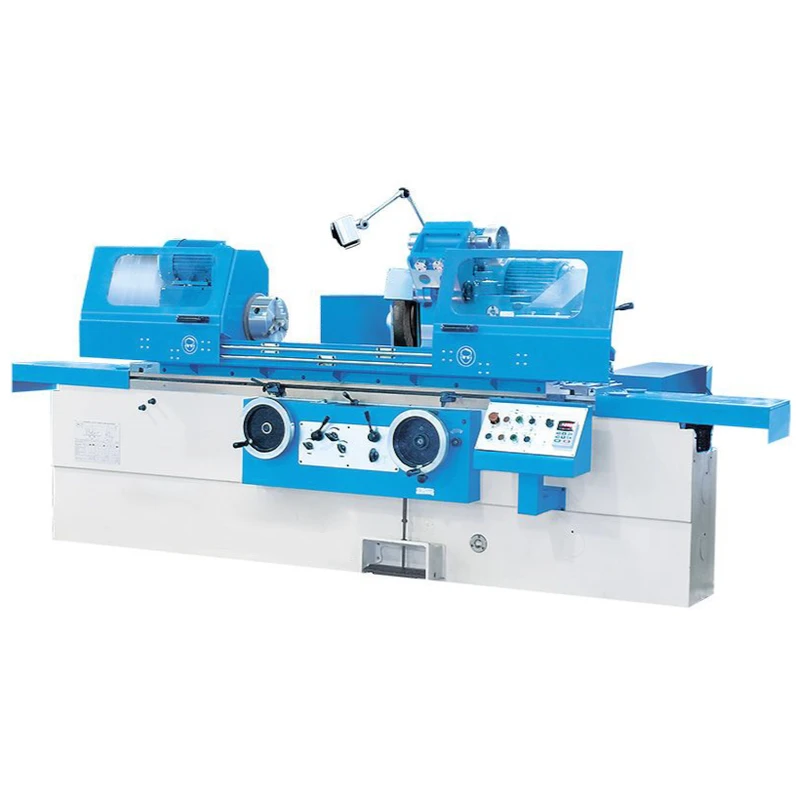

Metalcraft cylindrical grinding machine

Grinding types

layers

Surface
grinding

Processing of flat surfaces with high flatness and parallelism.

album

Internal
grinding

Precision processing of internal cylindrical and conical bores.

settings_input_component

Cylindrical
grinding

Processing of external cylindrical and conical surfaces between centers.

Production capacity

Equipment fleet

The facility operates specialized equipment for grinding operations:

data_usage

Internal grinding machine

  • Diameter: up to 350 mm
  • Length: up to 1000 mm
settings_input_component

Cylindrical grinding machine

  • Diameter: up to 350 mm
  • Length: up to 2100 mm
layers

Surface grinding machine

  • Height: up to 600 mm
  • Width: up to 600 mm
  • Length: up to 1600 mm
  • + grinding at any angle
New equipment

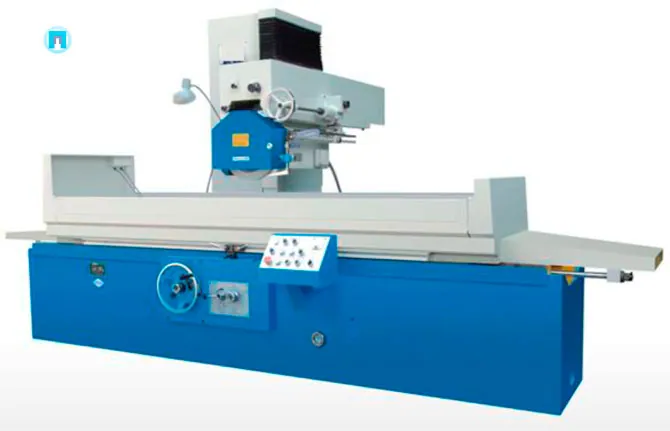

Surface grinding machine M7160x16

High-precision machine with rectangular electromagnetic table and horizontal spindle. Designed for surface grinding of parts using the wheel periphery.

Table working surface dimensions 1600 × 600 mm
Max. workpiece weight 500 kg
Distance from spindle axis to table 140 - 700 mm
Grinding wheel dimensions Ø500 × 75 × Ø203 mm
Accuracy / Surface roughness Grade 1-2 / Grade 7-9
Surface grinding machine M7160x16

Need grinding of parts?

Submit a request with drawings attached, and our engineers will contact you to discuss order details and the manufacturing process.
