Наши фрикционные изделия

Фрикционные изделия (сектора, вкладыши, пластины, кольца), изготавливаются нашей компанией как по представленным размерам, так и по любым нестандартным по чертежу заказчика.

Производство фрикционных изделий соответствует техническим условиям ООО "ППО". Также возможно изготовление изделий по заданным размерам заказчика.

Вкладыш фрикционный ВП

Эскиз вкладыша фрикционного ВП
Таблица размеров для фрикционных вкладышей ВП

Параметр B может быть любым, на заказ!

Поиск по параметрам A: B: C:
№ Артикул А В С Тип накладки (модель пресса)
1 ВП-001 32 110 32 60
2 39 110 39 60 УД 1141-803
3 40 110 40 60 УД 1830 А
4 45 110 45 60 УД 2638
5 48 110 48 60 УД 2638-01
6 50 110 50 60
7 52 110 52 60 УД 2638-02
8 ВП-002 80 32 45
9 ВП-003 210 46 160 К 3047 22 903
10 ВП-004 110 25 40
11 ВП-005 175 55 70 Innochenti, Kaizer, Emuko
12 ВП-006 240 55 90 ASMR, Emuko
13 ВП-007 20 75 20 60 КВ2326-22А-801 (УА 314 1)
14 23 75 23 60
15 26 75 26 60 КД 1426
16 28 75 28 60
17 29 75 29 60 26 60 75
18 30 75 30 60 47 311 102 21 001
19 33 75 33 60 ПМ45-18
20 35 75 35 60 ПМ45-18
21 40 75 40 60
22 45 75 45 60
23 47 75 47 60
24 55 75 55 60
25 ВП-008 55 20 30
26 ВП-009 35 110 35 90 Эрфурт 250 тн (К274А 21М 801)
27 36 110 36 90
28 38 110 38 90
29 39 110 39 90
30 40 110 40 90 УД 1414 (К274А 21М 801 1)
31 43 110 43 90 УД 1414 (К274А 21М 801 1)
32 45 110 45 90
33 ВП-010 105 42 40 Шулер P2Kdr-150-1,6 ( 47 311 901 21 002 )
34 ВП-011 85 32 35 47 346 401 21 001 Шулер А2-80W
35 ВП-012 225 35 160
36 ВП-013 32 150 32 60
37 35 150 35 60
38 ВП-014 30 90 30 60
39 32 90 32 60
40 ВП-015 34 13 18
41 ВП-016 24 115 24 70
42 35 115 35 70
43 ВП-017 30 140 30 110 ГКМ В 1132 А
44 42 140 42 110
45 ВП-018 110 32 45
46 ВП-019 33 15 18
47 ВП-020 54 25 39
48 ВП-021 100 30 60
49 ВП-022 32 170 32 90 К 8540
50 42 170 42 90 К 8540
51 45 170 45 90 К 8540
52 ВП-023 20 55 20 40 УА 3135 00 801
53 25 55 25 40 УА 3135 00 801
54 ВП-024 100 50 80

Вкладыш фрикционный ВУ

Эскиз вкладыша фрикционного ВУ
Таблица размеров для фрикционных вкладышей ВУ

Параметр B может быть любым, на заказ!

Поиск по параметрам A: B: C: R:
№ Артикул А В С R Тип накладки (модель пресса)
1 ВУ-001 40 125,0 40 205,0 330 4ЕК 7506
2 46 125,0 46 205,0 330 47 314 105 21 007 ( 4ЕК 7506 )
3 52 125,0 52 205,0 330 47 314 105 21 007 ( 4ЕК 7506 )
4 ВУ-002 98,0 45 106,0 545 ScTP 25/3150 (PKZ-500)
5 ВУ-003 95,0 38 175,0 287 ScTP 25/3150 (PKZ-500)
6 ВУ-004 29 130,0 29 225,0 305 3SK 4445 (4EK 3075-0)
7 40 130,0 40 225,0 305 3SK 4445 (4EK 3075-0)
8 45 130,0 45 225,0 305 3SK 4445 (4EK 3075-0)
9 ВУ-005 125,0 41 206,0 400 75625-03-03А
10 ВУ-006 50 160,0 50 282,0 495 4ЕК 3470
11 52 160,0 52 282,0 495 4ЕК 3470
12 ВУ-007 40 130,0 40 228,0 360 Reibklotz-4000
13 44 130,0 44 228,0 360 Reibklotz-4000
14 ВУ-008 115,0 40 196,0 320 ScTP 25/3150
15 ВУ-009 50 185,0 50 301,4 480 4ЕК 9502
16 58 185,0 58 301,4 480 4ЕК 9502 / 4ЕК 9006
17 ВУ-010 30 90,0 30 154,0 250
18 36 90,0 36 154,0 250
19 40 90,0 40 154,0 250
20 ВУ-011 145,0 46 260,0 405
21 ВУ-012 16 90,0 16 152,0 215
22 32 90,0 30 152,0 215
23 ВУ-013 32 100,0 32 176,0 288 Reibklotz-1600 (PKZ-500) (4ЕК-2850)
24 38 100,0 38 176,0 288 Reibklotz-1600 (PKZ-500) (4ЕК-2850)
25 40 100,0 40 176,0 288 Reibklotz-1600 (PKZ-500) (4ЕК-2850)
26 48 100,0 48 176,0 288 Reibklotz-1600 (PKZ-500) (4ЕК-2850)
27 ВУ-014 91,0 35 157,0 230 Пресс Эрфурт PEE1 400
28 ВУ-015 144,0 45 255,0 405 Ножницы 1600 т.с. №2
29 ВУ-016 32 80,0 32 136,0 228
30 40 80,0 40 136,0 228
31 ВУ-017 40 145,0 40 259,5 405 5543049 ( 4ЕК 3200 )
32 42 145,0 42 259,5 405 5543049 ( 4ЕК 3200 )
33 46 145,0 46 259,5 405 5543049 ( 4ЕК 3200 )
34 47 145,0 47 259,5 405 5543049 ( 4ЕК 3200 )
35 50 145,0 50 259,5 405 5543049 ( 4ЕК 3200 )
36 ВУ-018 144,0 46 256,9 405 1ЕК 3238-8
37 ВУ-019 99,7 44 106,7 250 3-294016
38 ВУ-020 160,0 50 288,0 465 F1KZZ 500 4ЕК 7506
39 ВУ-021 90,0 35 155,0 230
40 ВУ-022 138,0 40 220,0 360
41 ВУ-023 160,0 47 270,0 420
42 ВУ-024 160,0 50 280,0 496
43 ВУ-025 100,0 36 160,0 300
44 ВУ-026 150,0 36 182,0 288
45 ВУ-027 42 100,0 42 105,0 288
46 45 100,0 45 105,0 288
47 ВУ-028 89,5 30 115,0 240
48 ВУ-029 116,0 38 200,0 278
49 ВУ-030 205,0 54 336,0 525 Пресс печ U2000/4000 (UT57-6)
50 ВУ-031 79,0 25 131,0 215
51 ВУ-032 130,1 40 231,1 338
52 ВУ-033 79,0 40 133,2 450
53 ВУ-034 130,0 40 216,8 300
54 ВУ-035 120,0 11 226,0 875
55 ВУ-036 120,0 35 215,0 875
56 ВУ-037 156,1 50 280,0 453
57 ВУ-039 145,0 46 272,0 406 2ЕК 3270
58 ВУ-040 120,0 11 230,0 875 пресс К 8544

Вкладыш фрикционный ВК

Эскиз вкладыша фрикционного ВК
Таблица размеров для фрикционных вкладышей ВК

Параметр B может быть любым, на заказ!

Поиск по параметрам B: D:
№ Артикул В D Тип накладки (модель пресса)
1 ВК-001 30 30 82 УД 1303 пресс К2130 (47 311 101 21 001)
2 35 35 82
3 36 36 82
4 40 40 82 УД 1303-01
5 42 42 82
6 45 45 82
7 ВК-002 5 5 50
8 17 17 50
9 24 24 50
10 25 25 50
11 40 40 50
12 ВК-003 46 78
13 ВК-004 10 10 80
14 16 16 80
15 30 30 80 ГП 8336 24 11 (РШ 14 205) (С лыской)
16 35 35 80
17 36 36 80 К2160Б №049379 (С лыской)
18 40 40 80
19 ВК-005 4 98
20 ВК-006 8 8 40
21 10 10 40 УД 1303 02
22 30 30 40 УД 1303 02
23 ВК-007 29 82 УД 1159 ( С буртиком )
24 ВК-008 10 10 90
25 20 20 90
26 40 40 90
27 44 44 90
28 ВК-009 25 25 36
29 35 35 36
30 50 50 36
31 ВК-010 54 135
32 ВК-011 10 63
33 ВК-012 18 43
34 ВК-013 47 190
35 ВК-014 5 290
36 ВК-015 5 5 300
37 10 10 300
38 16 16 300
39 ВК-016 5 38
40 ВК-017 70 330
41 ВК-018 5 5 500
42 6 6 500
43 70 70 500
44 ВК-019 4 70
45 ВК-020 5 105
46 ВК-021 6 6 100
47 16 16 100
48 40 40 100
49 ВК-022 5 178
50 ВК-023 8 83
51 ВК-024 7 182
52 ВК-025 25 110
53 ВК-026 20 225
54 ВК-027 14 270
55 ВК-028 8 260
56 ВК-029 30 30 41 УД 1303
57 40 40 41 УД 1303 01
58 ВК-030 24 101
59 ВК-031 6 32
60 ВК-032 15 95
61 ВК-033 10 65
62 ВК-034 10 10 32
63 50 50 32
64 ВК-035 4 4 200
65 5 5 200
66 12 12 200
67 ВК-036 30 71
68 ВК-037 16 76
69 ВК-038 24 62
70 ВК-039 3 51
71 ВК-040 25 25 55
72 26 26 55
73 ВК-041 13 140
74 ВК-042 4 56
75 ВК-043 18 28
76 ВК-044 16 250
77 ВК-045 40 89

Сектор фрикционный

Эскиз сектора артикула ВС
Таблица размеров для фрикционного сектора
№ Артикул А R1 R2 В Тип накладки (модель пресса)
1 ВС-001 99 162,7 143,1 на заказ 712 48 9821 012 005
2 ВС-002 88 185,0 172,0 на заказ

Сектор фрикционный

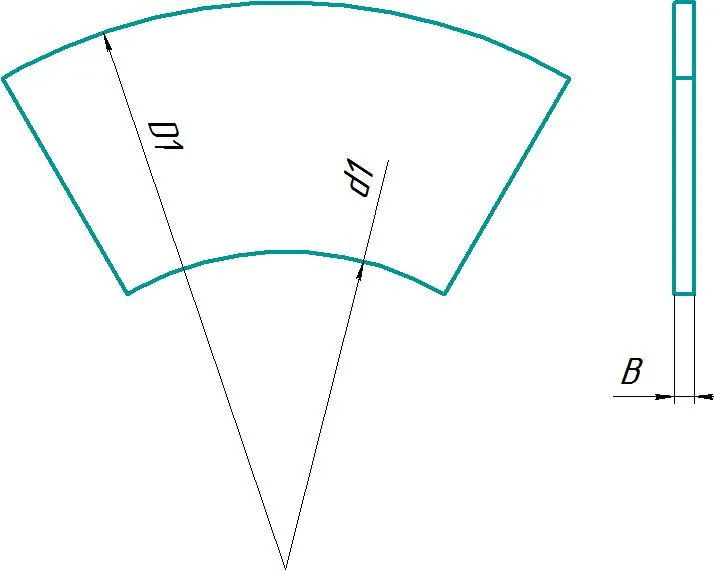

Эскиз фрикционного сектора
Таблица размеров для фрикционных секторов

Параметр B может быть любым, на заказ!

Поиск по параметрам D1: d2: B: Угол:
№ Артикул D1 d2 B Угол Тип накладки (модель пресса)
1 C-001 4 450,0 390,0 4,0 60 УВ 3141 00 009/801
2 5 450,0 390,0 5,0 60 УВ 3141 00 009/801
3 5,5 450,0 390,0 5,5 60 УВ 3141 00 009/801
4 6 450,0 390,0 6,0 60 УВ 3144 00 009/801
5 C-002 5 540,0 480,0 5,0 60 УВ 3144
6 6 540,0 480,0 6,0 60 УВ 3144
7 8 540,0 480,0 8,0 60 УД 2636
8 C-003 10-10 1600,0 1200,0 10,0 10
9 .10-45 1600,0 1200,0 10,0 45 УД 3119/2
10 .12-10 1600,0 1200,0 12,0 10 УД 3119/2
11 .13-10 1600,0 1200,0 13,0 10 14-405
12 C-004 3,5-65 451,0 200,0 3,5 65 14-405
13 5,5-65 451,0 200,0 5,5 65 14-405
14 5,5-60 451,0 200,0 5,5 60 43Т21
15 C-005 1045,0 560,0 10,0 60 43Т27
16 C-006 10-90 650,0 400,0 10,0 90 43Т27
17 .11-90 650,0 400,0 11,0 90
18 .8-60 650,0 400,0 8,0 60 43Т25
19 C-007 8 475,0 308,0 8,0 120 43Т25
20 10 475,0 308,0 10,0 120
21 C-008 660,0 380,0 10,0 60 (УД 6468) К 8538 23А-005/801А
22 C-009 10 1800,0 1560,0 10,0 15 (УД 6468) К 8538 23А-005/801А
23 11 1800,0 1560,0 11,0 15 (УД 6468) К 8538 23А-005/801А
24 12 1800,0 1560,0 12,0 15
25 C-010 10-23 1310,0 1070,0 10,0 23
26 12-22 1310,0 1070,0 12,0 22
27 C-011 12-23 2000,0 1760,0 12,0 23 К 8544 23
28 .10-15 2000,0 1760,0 10,0 15
29 .10-14 2000,0 1760,0 10,0 14
30 .12-14 2000,0 1760,0 12,0 14 К 8544 23
31 .15-15 2000,0 1760,0 15,0 15 К 8544 23 005/801
32 .16-15 2000,0 1760,0 16,0 15 УД 503-801
33 C-012 8-60 480,0 340,0 8,0 60 УД 503-801
34 .9-60 480,0 340,0 9,0 60 УД 503-801
35 .10-60 480,0 340,0 10,0 60 УД 503-801
36 .12-60 480,0 340,0 12,0 60 УД 503-801
37 8-120 480,0 340,0 8,0 120
38 C-013 1800,0 940,0 12,0 60
39 C-014 850,0 616,0 10,0 60
40 C-015 1980,0 1524,0 10,0 30
41 C-016 1600,0 1000,0 10,0 15 пресс К2132 УД5-03-801-05
42 C-017 6 475,0 333,0 6,0 60 пресс К2132 УД5-03-801-05
43 8 475,0 333,0 8,0 60 пресс К2132 УД5-03-801-05
44 9 475,0 333,0 9,0 60 УД 5-03-801-05
45 10 475,0 333,0 10,0 60 УД 5-03-801-05
46 12 475,0 333,0 10,0 60
47 14 475,0 333,0 14,0 60
48 C-018 496,0 318,0 10,0 120
49 C-019 406,0 266,0 10,0 120
50 C-020 630,0 538,0 8,0 45
51 C-021 8 1440,0 800,0 8,0 15
52 10 1440,0 800,0 10,0 15
53 C-022 1334,0 952,0 12,0 90
54 C-023 500,0 355,0 15,0 45
55 10 500,0 355,0 10,0 45
56 C-024 1120,0 700,0 10,0 45
57 C-025 1346,0 860,0 12,0 60
58 C-026 2250,0 1600,0 12,0 23 LKM 4000, smeral 2500
59 C-027 10-15 2100,0 1300,0 10,0 15 LKM 4000, smeral 2500
60 15-7,5 2100,0 1300,0 15,0 8 LKM 4000, smeral 2500
61 .12-15 2100,0 1300,0 12,0 15 LKM 4000, smeral 2500
62 15-15 2100,0 1300,0 15,0 15 пресс LKM 2500
63 C-028 1050,0 630,0 10,0 60
64 C-029 12 430,0 230,0 12,0 90
65 10 430,0 230,0 10,0 90
66 C-031 1118,0 686,0 10,0 60
67 C-032 8 1000,0 700,0 8,0 60
68 10 1000,0 700,0 10,0 60
69 C-033 1144,0 650,0 10,0 45
70 C-034 1680,0 1120,0 8,0 30
71 C-035 670,0 340,0 20,0 120
72 C-036 5 1240,0 1080,0 5,0 60
73 5,5 1240,0 1080,0 5,5 60
74 C-037 5-45 300,0 200,0 5,0 45
75 .6-60 300,0 200,0 6,0 60
76 .4-90 300,0 200,0 6,0 90
77 .5-90 300,0 200,0 5,0 90 43Т23
78 C-038 490,0 360,0 8,0 120
79 C-039 10-90 580,0 400,0 10,0 90
80 .7-56 580,0 400,0 7,0 56 Муфта У3611
81 C-040 578,0 407,0 10,0 60 УД 3357
82 C-041 8-72 730,0 610,0 8,0 72 УД 3357
83 ,9-72 730,0 610,0 9,0 72 УД 3357
84 ,10-72 730,0 610,0 10,0 72 УД 3357
85 ,12-72 730,0 610,0 12,0 72 УД 3357
86 20-60 730,0 610,0 8,0 72
87 C-042 600,0 520,0 6,0 60
88 C-043 6-60 540,0 470,0 6,0 60
89 5-180 540,0 470,0 5,0 180
90 C-044 440,0 370,0 6,0 60
91 C-045 600,0 450,0 10,0 60
92 C-046 944,0 700,0 12,0 30 УВ 3146-000-009/801
93 C-047 5 620,0 540,0 5,0 60 УВ 3146-000-009/801
94 6 620,0 540,0 6,0 60 УВ 3146-000-009/801
95 7 620,0 540,0 7,0 60 УВ 3146-000-009/801
96 8 620,0 540,0 8,0 60 Муфта КД 2330
97 10 620,0 540,0 10,0 60
98 C-048 5,5 630,0 530,0 5,5 90
99 C-049 5-72 300,0 250,0 5,0 72
100 .4-60 300,0 250,0 4,0 60
101 .6-60 300,0 250,0 6,0 60
102 C-050 270,0 90,0 5,0 60
103 C-051 260,0 210,0 5,0 60
104 C-052 1748,0 1514,0 11,5 16 47 365 001 21 001 ( 65251-10 )
105 C-053 290,0 120,0 10,0 90
106 C-054 640,0 420,0 10,0 60
107 C-055 576,0 400,0 12,0 120
108 C-056 920,0 540,0 12,0 90
109 C-057 8-60 610,0 360,0 8,0 60 3Р2-80,1
110 .6-90 610,0 360,0 6,0 90
111 C-058 900,0 580,0 10,0 60 УД 5 03 801 07
112 C-059 10 614,0 406,0 10,0 60 УД 5 03 801 07
113 12 614,0 406,0 12,0 60
114 C-060 1200,0 820,0 10,0 23
115 C-061 1370,0 814,0 10,0 90
116 C-062 604,0 430,0 10,0 60
117 C-063 1020,0 520,0 10,0 60
118 C-064 1460,0 1000,0 8,0 72
119 C-065 1400,0 980,0 10,0 45
120 C-066 1000,0 500,0 12,0 45
121 C-067 450,0 386,0 6,0 60
122 C-068 765,0 450,0 10,0 60
123 C-069 647,0 350,0 9,0 60
124 C-070 8-60 345,0 245,0 8,0 60
125 .6-90 345,0 245,0 6,0 90
126 C-071 5 380,0 280,0 5,0 60
127 7 380,0 280,0 7,0 60
128 C-072 580,0 420,0 12,0 45
129 C-073 360,0 240,0 6,0 90
130 C-074 1700,0 1200,0 13,0 11 50730080404353 (FT2/60 M-3)
131 C-075 800,0 560,0 10,0 45 47 311 902 21 007 (РМВ-250)
132 C-076 594,0 390,0 5,5 26 УД 3510
133 C-077 8-36 730,0 500,0 8,0 36 УД 2869 ( КА 3132А), УД 1791/20
134 8-72 730,0 500,0 8,0 72 УД 2869
135 .9-72 730,0 500,0 9,0 72 УД 2869
136 .10-72 730,0 500,0 10,0 72 47.311.903.21.001
137 .12-72 730,0 500,0 12,0 72 47 365 002 21 001
138 .18-72 730,0 500,0 18,0 72 47 365 002 21 001
139 .15-90 730,0 500,0 15,0 90 3Р5-803 ( К217 )
140 C-078 7-60 378,0 284,0 7,0 60 ГМ 9420-2 ( КП 300, У 2536 ) УД5-03-801-04
141 8-60 378,0 284,0 8,0 60 ГМ 9420-2 ( КП 300, У 2536 ) УД5-03-801-04
142 9-60 378,0 284,0 9,0 60 ГМ 9420-2 ( КП 300, У 2536 ) УД5-03-801-04
143 .9-90 378,0 284,0 9,0 90 ГМ 9420-2 ( КП 300, У 2536 ) УД5-03-801-04
144 .9-90 378,0 284,0 9,0 90 ГМ 9420-2 ( КП 300, У 2536 ) УД5-03-801-04
145 .9-120 378,0 284,0 9,0 120 КВ 235
146 C-080 8-90 660,0 450,0 8,0 90 КВ 235
147 .10-90 660,0 450,0 10,0 90
148 .13-45 660,0 450,0 13,0 45
149 .5-60 660,0 450,0 5,0 60
150 .8-60 660,0 450,0 8,0 60 Раскин 180
151 C-081 606,0 262,0 22,0 180 4507Е
152 C-082 10-180 490,0 355,0 10,0 180 422 00097/Е 007 пресс РС 20М
153 .10-60 490,0 355,0 10,0 60 B80 WN 1113 ( PR160/315 )
154 C-083 5-90 308,0 208,0 5,0 90 B80 WN 1113 ( PR160/315 )
155 .5-45 308,0 208,0 5,0 90 B125 WN 1113 К 13303-09 ( DR200/800 )
156 C-084 358,0 238,0 5,0 90 K273, УД386-120гр
157 C-085 8-90 540,0 385,0 8,0 90 K273, УД386-120гр
158 8-120 540,0 385,0 8,0 120 А315 WN1113 ( ST16/3500 )
159 C-086 478,0 268,0 6,0 60 B200 WN1113 ( ST10/2500 )
160 C-087 6 416,0 268,0 6,0 90
161 20 416,0 268,0 20,0 90 Комацу200 (рулонница)
162 C-088 200,0 90,0 10,0 90 Комацу200 (валковая подача)
163 C-089 260,0 130,0 5,0 60 УВ 3132 00 009/801
164 C-090 4-60 260,0 220,0 4,0 60 УВ 3132 00 009/801
165 .5-60 260,0 220,0 5,0 60 УВ 3132 00 009/801
166 .6-90 260,0 220,0 6,0 90 4734680319008 ( 1810SA )
167 C-091 664,0 405,0 25,0 90 4734680301008 ( 1810SA )
168 C-092 708,0 414,0 22,0 90 К 480 С
169 C-093 500,0 320,0 6,0 90 УД 1787
170 C-094 8 910,0 710,0 8,0 60 УД 1787
171 10 910,0 710,0 10,0 60 К 2322-13005/2
172 C-095 465,0 246,0 6,0 120 3440 03 112 0 0
173 C-096 670,0 430,0 10,0 60 3450 03 112 0 0
174 C-097 820,0 560,0 10,0 60
175 C-098 8 492,0 432,0 8,0 90
176 10 492,0 432,0 10,0 90
177 C-099 175,0 120,0 5,5 90
178 C-100 8 740,0 520,0 8,0 60
179 10 740,0 520,0 10,0 60
180 C-101 492,0 408,0 6,0 60
181 C-102 720,0 500,0 10,0 60
182 C-103 12-30 1050,0 620,0 12,0 30
183 .8-60 1050,0 620,0 8,0 60
184 .12-60 1050,0 620,0 12,0 60
185 .12-20 1050,0 620,0 12,0 20
186 C-104 1100,0 700,0 12,0 17
187 C-105 1540,0 1240,0 10,0 30
188 C-106 1400,0 1100,0 12,0 10
189 C-107 706,0 488,0 5,5 11
190 C-108 950,0 700,0 10,0 30
191 C-109 630,0 430,0 10,0 60
192 C-110 480,0 308,0 6,0 60
193 C-111 500,0 380,0 8,0 60
194 C-112 10 600,0 370,0 10,0 60
195 25 600,0 370,0 25,0 60 УД 2125
196 C-113 10 830,0 590,0 10,0 72 УД 2125
197 12 830,0 590,0 12,0 72 НТ 150600012 ( с отверстиями )
198 C-114 650,0 590,0 45,0 50 НТ 150600012 ( без отверстий )
199 1 650,0 590,0 45,0 50
200 C-115 916,0 770,0 8,0 28
201 C-116 365,0 260,0 6,0 90 425-806-03
202 C-117 6-120 646,0 394,0 6,0 120 25-806-03
203 .6-90 646,0 394,0 6,0 90 25-806-03
204 .6-60 646,0 394,0 6,0 60 25-806-03
205 .8-60 646,0 394,0 8,0 60 47 311 671 21 001, К 2132
206 C-118 8 675,0 580,0 8,0 72 47 311 671 21 001
207 10 675,0 580,0 10,0 72 УД 1534
208 C-119 8 1450,0 650,0 8,0 30 УД 1534
209 14 1450,0 650,0 14,0 30 УД 503 801 06
210 C-120 10 575,0 406,0 10,0 60 УД 503 801 06
211 12 575,0 406,0 12,0 60
212 C-121 8 750,0 500,0 8,0 60
213 9 750,0 500,0 9,0 60
214 C-122 870,0 700,0 12,0 60
215 C-123 950,0 666,0 8,0 60
216 C-124 630,0 450,0 10,0 45
217 C-125 1200,0 1000,0 15,0 45
218 C-126 680,0 386,0 26,0 45 3532.10.02 101 (0076-III-44)
219 C-127 465,0 310,0 5,7 120 Пресс 63 т.с (25-808-01)
220 C-128 5 560,0 475,0 5,0 60
221 6 560,0 475,0 6,0 60 К2324-13005/2
222 C-129 5 570,0 310,0 5,0 90 К2324-13005/2
223 6 570,0 310,0 6,0 90 43Т24
224 C-130 410,0 270,0 8,0 120 К8544 23 005/801
225 C-131 10 2000,0 1790,0 10,0 15 К8544 23 005/801
226 16 2000,0 1790,0 16,0 15
227 C-132 1455,0 800,0 8,5 15 УВ 3138 00 009/801
228 C-133 4-60 355,0 295,0 4,0 60 УВ 3138 00 009/801
229 5-60 355,0 295,0 5,0 60 УВ 3138 00 009/801
230 6-60 355,0 295,0 6,0 60 УВ 3138 00 009/801
231 4-90 355,0 295,0 4,0 90 УВ 3138 00 009/801
232 5-90 355,0 295,0 5,0 90
233 C-134 400,0 200,0 4,0 60
234 C-135 738,0 382,0 15,0 120
235 C-136 435,0 263,0 15,0 120
236 C-137 532,0 312,0 15,0 60
237 C-138 508,0 153,0 14,0 120
238 C-139 415,0 273,0 10,0 90
239 C-140 1036,0 630,0 10,0 45
240 C-141 1360,0 1000,0 10,0 45
241 C-142 12-90 950,0 570,0 12,0 90
242 .12-60 950,0 570,0 12,0 60 3-112108
243 C-143 900,0 630,0 10,0 45 65254-10
244 C-144 435,0 180,0 10,0 90 201935-9
245 C-145 575,0 300,0 10,0 90 66396-7
246 C-146 450,0 230,0 10,0 90 201519
247 C-147 2000,0 1500,0 10,0 45
248 C-148 2700,0 2100,0 10,0 30 13510008009
249 C-149 604,0 396,0 6,0 30
250 C-150 600,0 360,0 12,0 60 3128019
251 C-151 10-12 2610,0 1840,0 10,0 12 630010040101
252 .12-12 2610,0 1840,0 12,0 12 630010040101
253 .15-12 2610,0 1840,0 15,0 12 630010040101
254 .10-6 2610,0 1840,0 10,0 6 630010040101
255 .12-6 2610,0 1840,0 12,0 6 630010040101
256 .15-6 2610,0 1840,0 15,0 6 630010040101
257 .16-6 2610,0 1840,0 16,0 6
258 C-152 710,0 360,0 6,0 60
259 C-153 550,0 236,0 8,0 60
260 C-154 10-15 1810,0 1000,0 10,0 15
261 10-30 1810,0 1000,0 10,0 30
262 C-155 400,0 330,0 4,0 65
263 C-156 885,0 735,0 6,0 60
264 C-157 660,0 550,0 10,0 32
265 C-158 700,0 490,0 8,0 90
266 C-159 960,0 710,0 16,0 60
267 C-160 308,0 226,0 8,0 60
268 C-161 16-10 1590,0 1080,0 16,0 10 6300Р-031
269 .8-20 1590,0 1080,0 8,0 20 6300Р-031
270 .10-20 1590,0 1080,0 10,0 20
271 .15-10 1590,0 1080,0 15,0 10
272 .16-20 1590,0 1080,0 16,0 20 Пресс К 8546, 4000 тн.
273 C-162 12-72 1260,0 980,0 12,0 72
274 12-45 1260,0 980,0 12,0 45 mekolpress
275 C-163 520,0 350,0 10,0 45
276 C-164 520,0 380,0 7,0 60
277 C-165 570,0 410,0 6,0 90
278 C-166 4 410,0 250,0 4,0 60
279 7 410,0 250,0 7,0 60
280 C-167 6-60 470,0 390,0 6,0 60
281 .5-180 470,0 390,0 5,0 180
282 C-168 8 1968,0 1340,0 8,0 45
283 10 1968,0 1340,0 10,0 45
284 C-169 6-45 1170,0 720,0 6,0 45
285 .8-45 1170,0 720,0 8,0 45
286 .6-60 1170,0 720,0 6,0 60
287 C-170 580,0 410,0 10,0 60 1225-20-3
288 C-171 470,0 250,0 4,0 60
289 C-172 30-100 915,0 490,0 30,0 100
290 .22-45 915,0 490,0 22,0 45 УД 2635
291 C-173 1200,0 900,0 13,0 11 пресс LKM 4000
292 C-174 8 1445,0 800,0 8,0 14 пресс LKM 4000
293 10 1445,0 800,0 10,0 14 пресс LKM 4000
294 12 1445,0 800,0 12,0 14 пресс Фичеп 1600
295 C-175 880,0 590,0 10,0 60 пресс Хатебур АМР-70 муфта
296 C-176 742,0 519,0 8,0 60 пресс Хатебур АМР-70 тормоз
297 C-177 668,0 440,0 5,0 60
298 C-178 4 545,0 475,0 4,0 60
299 5 545,0 475,0 5,0 60
300 6 545,0 475,0 6,0 60
301 C-179 546,0 348,0 12,0 60
302 C-180 308,0 250,0 6,0 60
303 C-181 8 390,0 210,0 8,0 90
304 9 390,0 210,0 9,0 90
305 C-182 543,0 522,0 5,0 60
306 C-183 571,0 412,0 10,0 60
307 C-184 650,0 450,0 10,0 60
308 C-185 368,0 315,4 15,0 30 НВ 3221, КД 2124, МВ 3221
309 C-186 4 360,0 290,0 4,0 60 НВ 3221, КД 2124, МВ 3221
310 5 360,0 290,0 5,0 60 НВ 3221, КД 2124, МВ 3221
311 8 360,0 290,0 8,0 60
312 C-187 15-15 1300,0 790,0 15,0 15
313 .12-30 1300,0 790,0 12,0 30
314 C-188 850,0 340,0 10,0 60 К8542-23-005/802
315 C-189 12-18 1750,0 1540,0 12,0 18 К8542-23-005/802
316 .12-12 1750,0 1540,0 12,0 12
317 .10-12 1750,0 1540,0 10,0 12
318 C-190 750,0 630,0 8,0 60
319 C-191 360,0 225,0 8,0 60
320 C-192 1400,0 1042,0 20,0 40
321 C-193 8-30 910,0 550,0 8,0 30
322 5-60 910,0 550,0 5,0 60
323 8-60 910,0 550,0 8,0 60
324 C-194 445,0 390,0 6,0 60
325 C-195 358,0 235,0 5,0 90
326 C-196 745,0 545,0 10,0 60
327 C-197 720,0 505,0 10,0 60
328 C-198 5 496,0 408,0 5,0 60
329 6 496,0 408,0 6,0 60
330 10 496,0 408,0 10,0 60
331 C-199 600,0 250,0 9,2 90
332 C-200 850,0 470,0 9,2 90
333 C-201 10-30 1250,0 870,0 10,0 30
334 .10-45 1250,0 870,0 10,0 45 лебёдка сычуань хун хуа JCO88-SM PЭ
335 C-202 1600,0 1220,0 33,0 30
336 C-203 445,0 380,0 5,0 60
337 C-204 445,0 410,0 5,0 60
338 C-205 900,0 576,0 10,0 60
339 C-206 890,0 820,0 5,0 90
340 C-207 770,0 650,0 10,0 60
341 C-208 610,0 430,0 8,0 60
342 C-209 610,0 430,0 8,0 90 25-808-01
343 C-210 548,0 348,0 6,0 120
344 C-211 538,0 270,0 8,0 90 УД 2635
345 C-212 10-5,6 2480,0 2180,0 10,0 6 УД 2635
346 .10-9 2480,0 2180,0 10,0 9
347 C-213 1400,0 980,0 10,0 45 У 3711 00 030/812
348 C-214 614,0 480,0 10,0 60 422 00098/Е 009 пресс РС 20М
349 C-215 720,0 640,0 8,0 46 УД 1176
350 C-216 850,0 420,0 8,0 60
351 C-217 330,0 232,0 8,0 90
352 C-218 403,0 250,0 5,0 60
353 C-219 380,0 285,0 7,0 60
354 C-220 450,0 240,0 5,0 60 КВ 2538
355 C-221 750,0 520,0 8,0 60
356 C-222 4 455,0 380,0 4,0 60
357 5 455,0 380,0 5,0 60
358 C-223 540,0 450,0 5,0 45
359 C-224 355,0 235,0 8,0 60
360 C-225 4 540,0 340,0 4,0 60
361 10 540,0 340,0 10,0 60
362 C-226 700,0 480,0 10,0 60
363 C-227 (4-60) 450,0 380,0 4,0 60 Пресс 40т т.с (УД 5-03-801-04)
364 (5-60) 450,0 380,0 5,0 60 Пресс 40т т.с (УД 5-03-801-04)
365 (6-60) 450,0 380,0 6,0 60 Пресс 40т т.с (УД 5-03-801-04)
366 (6-90) 450,0 380,0 6,0 90
367 (8-180) 450,0 380,0 8,0 180 4111815 ОПР УД 6470
368 C-228 2500,0 1900,0 12,5 16
369 C-229 595,0 350,0 5,0 60
370 C-230 380,0 230,0 10,0 60
371 C-231 4 386,0 295,0 4,0 90
372 5 386,0 295,0 5,0 90 пресс К 04127846
373 C-232 2600,0 1840,0 10,0 12
374 C-233 6 820,0 420,0 6,0 60
375 8 820,0 420,0 8,0 60
376 C-234 690,0 460,0 10,0 90
377 C-235 600,0 500,0 7,0 180
378 C-236 870,0 710,0 8,0 60
379 C-237 1560,0 1320,0 12,0 22 ГП 8336 24 12
380 C-238 950,0 694,0 8,0 60
381 C-239 650,0 520,0 5,0 60
382 C-240 535,0 380,0 6,0 90
383 C-241 790,0 760,0 68,0 40
384 C-242 1280,0 810,0 10,0 24
385 C-243 780,0 360,0 35,0 30
386 C-244 485,0 410,0 5,0 72
387 C-245 4 505,0 425,0 4,0 60
388 5 505,0 425,0 5,0 60
389 C-246 10 620,0 410,0 10,0 60
390 12 620,0 410,0 12,0 60
391 C-247 384,0 246,0 16,0 60
392 C-248 350,0 135,0 6,0 60 СМ 443A02 16A
393 C-249 5-72 730,0 450,0 5,0 72 СМ 443A02 15A
394 .5-36 730,0 450,0 5,0 36
395 C-250 410,0 350,0 6,0 60
396 C-251 6 495,0 430,0 6,0 60
397 7 495,0 430,0 7,0 60
398 C-252 458,0 250,0 5,0 90
399 C-253 5 605,0 525,0 5,0 60
400 8 605,0 525,0 8,0 60
401 C-254 635,0 575,0 5,0 60
402 C-255 900,0 720,0 8,0 60
403 C-256 516,0 378,0 12,0 60
404 C-257 426,0 381,0 6,0 60
405 C-258 294,0 210,0 20,0 60 Пресс РС 10М1
406 C-259 360,0 260,0 7,0 72
407 C-260 540,0 370,0 10,0 60
408 C-261 710,0 490,0 10,0 45
409 C-262 360,0 160,0 6,0 90
410 C-263 480,0 335,0 8,0 60 1021408006 СБ
411 C-264 307,0 250,0 3,0 75
412 C-265 440,0 380,0 4,0 60 УД 2869
413 C-266 650,0 500,0 9,0 72
414 C-267 675,0 560,0 8,0 30
415 C-268 385,0 315,0 10,0 60
416 C-269 545,0 480,0 5,0 60
417 C-270 305,0 250,0 4,0 60
418 C-271 450,0 383,0 5,0 60
419 C-272 5-60 480,0 330,0 5,0 60
420 .6-60 480,0 330,0 6,0 60
421 .8-60 480,0 330,0 8,0 60
422 .10-60 480,0 330,0 10,0 60
423 10-120 480,0 330,0 10,0 120
424 12-120 480,0 330,0 12,0 120
425 C-273 630,0 590,0 50,5 50
426 C-274 574,0 435,0 5,0 45
427 C-275 460,0 310,0 5,0 60
428 C-276 6 300,0 240,0 6,0 60
429 12 300,0 240,0 12,0 60
430 C-277 375,0 290,0 8,0 60
431 C-278 345,0 210,0 8,0 60
432 C-279 5-60 670,0 390,0 5,0 60
433 .5-90 670,0 390,0 5,0 90
434 C-280 304,0 254,0 5,0 72
435 C-281 430,0 370,0 6,0 60
436 C-282 455,0 285,0 5,0 60
437 C-283 580,0 480,0 5,0 60
438 C-284 4-60 515,0 355,0 4,0 60
439 .8-60 515,0 355,0 8,0 60
440 .8-90 515,0 355,0 8,0 90
441 C-285 380,0 215,0 9,0 60
442 C-286 460,0 380,0 5,0 60
443 C-287 530,0 435,0 8,0 24
444 C-288 520,0 430,0 8,0 60
445 C-289 42,0 36,0 15,0 100
446 C-290 475,0 235,0 8,0 60
447 C-291 570,0 320,0 5,0 90
448 C-292 580,0 290,0 10,0 60 УД 1148
449 C-293 1860,0 1000,0 8,0 30
450 C-294 12-60 955,0 715,0 12,0 60
451 .12-30 955,0 715,0 12,0 30
452 C-295 1500,0 930,0 12,0 30
453 C-296 6 890,0 730,0 6,0 60
454 8 890,0 730,0 8,0 60
455 9 890,0 730,0 9,0 60
456 C-297 560,0 380,0 6,0 60
457 C-298 460,0 330,0 13,0 60
458 C-299 220,0 137,0 12,0 60
459 C-300 798,0 764,0 65,0 40
460 C-301 900,0 850,0 76,0 40
461 C-302 162,0 137,0 9,0 90
462 C-303 280,0 213,0 6,0 90
463 C-304 10 728,0 494,0 10,0 72
464 12 728,0 494,0 12,0 72
465 C-305 454,0 316,0 10,0 60
466 C-306 150,0 140,0 28,0 33
467 C-307 403,0 230,0 5,0 90
468 C-308 10-55 150,0 144,0 10,0 55
469 .10-80 150,0 144,0 10,0 80 ВИ 373
470 C-309 620,0 500,0 12,0 76 К2326-13005/2
471 C-310 648,0 340,0 5,5 90 53 2081 07.02.402
472 C-311 356,0 170,0 6,0 90
473 C-312 350,0 210,0 5,0 90
474 C-313 650,0 540,0 5,0 60
475 C-314 450,0 250,0 10,0 60
476 C-315 6-60 370,0 235,0 6,0 60
477 6-90 370,0 235,0 6,0 90 УД 7071 БА
478 C-316 2510,0 1980,0 13,0 60
479 C-317 800,0 600,0 8,0 60
480 C-318 510,0 350,0 8,0 60
481 C-319 6-75 672,0 562,0 6,0 75
482 6-24 672,0 562,0 6,0 24
483 C-320 6 380,0 312,0 6,0 90
484 8 380,0 312,0 8,0 90
485 10 380,0 312,0 10,0 90
486 C-321 585,0 420,0 5,0 60
487 C-322 0,0 0,0 4,0 60
488 C-323 356,0 293,0 6,0 60 К 0563801 22 009/801
489 C-324 750,0 530,0 8,0 35
490 C-325 450,0 375,0 5,0 60
491 C-326 0,0 0,0 7,0 90
492 C-327 500,0 420,0 7,0 90
493 C-328 4,5 520,0 400,0 4,5 60
494 6 520,0 400,0 6,0 60
495 C-329 760,0 610,0 6,0 60
496 C-330 12-20 0,0 0,0 12,0 20
497 .12-10 0,0 0,0 12,0 10
498 C-331 355,0 210,0 10,0 60
499 C-332 395,0 250,0 10,0 60
500 C-333 445,0 200,0 5,5 60
501 C-334 550,0 450,0 5,0 180
502 C-335 580,0 440,0 10,0 60
503 C-336 640,0 530,0 8,0 90
504 C-337 500,0 430,0 8,0 72
505 C-338 470,0 400,0 4,0 60 К 13303-10
506 C-339 4 478,0 308,0 4,0 60 К 13303-10
507 6 478,0 308,0 6,0 60
508 C-340 298,0 284,0 60,0 114
509 C-341 562,0 370,0 20,0 60
510 C-342 486,0 320,0 16,0 60
511 C-343 448,0 335,0 10,0 72
512 C-344 420,0 280,0 8,0 120
513 C-345 620,0 540,0 5,0 90
514 C-346 575,0 360,0 27,0 60
515 C-347 678,0 520,0 9,0 180
516 C-348 1750,0 1500,0 10,0 15
517 C-349 625,0 540,0 7,0 60
518 C-350 755,0 685,0 8,0 30
519 C-351 750,0 525,0 12,0 42
520 C-352 129,0 58,0 3,0 120
521 C-353 465,0 385,0 4,0 60
522 C-354 530,0 360,0 10,0 60
523 C-355 510,0 480,0 4,0 60
524 C-355 510,0 480,0 4,0 60
525 C-356 633,0 550,6 4,0 45
526 C-357 410,0 340,0 8,0 60
527 C-358 900,0 500,0 10,0 60
528 C-359 460,0 300,0 6,0 90
529 C-360 235,0 190,0 4,0 60
530 C-361 350,0 290,0 4,0 60
531 C-362 550,0 480,0 6,0 60
532 C-363 625,0 525,0 6,0 60
533 C-364 265,0 210,0 8,0 60
534 C-365 300,0 260,0 4,0 90
535 C-366 720,0 510,0 10,0 72
536 C-367 720,0 495,0 10,0 60
537 C-368 480,0 348,0 6,0 60
538 C-369 800,0 595,0 8,0 60
539 C-370 507,0 350,0 8,0 60
540 C-371 450,0 320,0 8,0 60
541 C-372 355,0 285,0 6,0 60
542 C-373 362,0 242,0 5,0 180
543 C-374 5,5 460,0 322,0 5,5 180
544 6 460,0 322,0 6,0 180
545 C-375 609,0 369,0 6,5 180
546 C-376 740,0 620,0 10,0 90
547 C-377 4 445,0 240,0 4,0 60
548 5 445,0 240,0 5,0 60
549 C-378 450,0 415,0 5,0 90
550 C-379 6 470,0 330,0 6,0 60
551 10 470,0 330,0 10,0 60
552 C-380 752,0 500,0 7,0 60
553 C-381 735,0 630,0 8,0 30
554 C-382 755,0 630,0 8,0 60
555 C-383 5 540,0 350,0 5,0 60
556 10 540,0 350,0 10,0 60
557 C-384 340,0 290,0 5,0 90
558 C-385 250,0 145,0 5,0 90
559 C-386 1220,0 760,0 8,0 30
560 C-387 1565,0 1275,0 23,0 30
561 C-388 1490,0 1120,0 22,0 30
562 C-389 950,0 575,0 12,0 60
563 C-390 560,0 500,0 5,0 60
564 C-391 478,0 284,0 8,0 60
565 C-392 190,0 150,0 8,5 30
566 C-393 575,0 400,0 8,0 60
567 C-394 550,0 200,0 5,0 90
568 C-395 400,0 290,0 6,0 60
569 C-396 1010,0 650,0 8,0 30
570 C-397 150,0 90,0 4,0 40
571 C-398 640,0 400,0 10,0 72
572 C-399 590,0 430,0 8,0 60
573 C-400 518,0 390,0 8,0 60
574 C-401 545,0 505,0 8,0 60
575 C-402 1310,0 1100,0 11,0 30
576 C-403 340,0 245,0 7,0 90
577 C-404 6 560,0 390,0 6,0 60
578 9 560,0 390,0 9,0 60
579 C-405 670,0 520,0 9,0 90
580 C-406 545,0 470,0 8,0 60
581 C-407 275,0 165,0 5,0 60
582 C-408 10-90 400,0 161,0 10,0 90
583 10-60 400,0 161,0 10,0 60
584 C-409 250,0 150,0 6,0 120
585 C-410 348,0 297,0 5,0 90
586 C-411 6,2-72 490,0 430,0 6,2 72
587 .7-90 490,0 430,0 6,2 90
588 C-412 950,0 860,0 8,0 72
589 C-413 1280,0 820,0 10,0 42
590 C-414 295,0 255,0 4,0 60
591 C-415 510,0 260,0 8,0 90
592 C-416 420,0 320,0 5,0 60
593 C-417 585,0 421,0 3,0 72
594 C-418 8 890,0 725,0 8,0 60
595 10 890,0 725,0 10,0 60
596 C-419 560,0 395,0 8,0 60
597 C-420 544,0 465,0 5,0 60
598 C-421 1280,0 1000,0 10,0 45
599 C-422 475,0 375,0 8,0 120
600 C-423 415,0 340,0 6,0 60
601 C-424 576,0 436,0 10,0 60
602 C-425 350,0 246,0 6,0 60
603 C-426 990,0 850,0 8,0 30
604 C-427 710,0 550,0 8,0 60
605 C-428 1750,0 1510,0 10,0 15
606 C-429 80,0 40,0 4,0 180
607 C-430 420,0 275,0 6,0 90
608 C-431 460,0 390,0 5,0 60
609 C-432 298,0 250,0 10,0 64
610 C-433 760,0 600,0 7,0 60
611 C-434 450,0 385,0 5,0 60
612 C-435 613,0 365,0 8,0 60
613 C-436 540,0 320,0 5,0 60
614 C-437 555,0 486,0 4,0 60
615 C-438 463,0 389,0 5,0 36
616 C-439 296,0 198,0 20,5 60
617 C-440 800,0 600,0 12,5 10
618 C-441 340,0 255,0 3,0 90
619 C-442 500,0 350,0 7,0 72
620 C-443 420,0 380,0 4,0 60
621 C-444 4 470,0 430,0 4,0 60
622 6 470,0 430,0 6,0 60
623 8 470,0 430,0 8,0 60
624 C-445 400,0 340,0 2,0 90
625 C-446 1740,0 1500,0 12,0 15
626 C-447 900,0 740,0 8,0 90
627 C-448 380,0 286,0 6,0 60
628 C-449 1780,0 1497,0 10,0 15
629 C-450 920,0 650,0 4,0 60
630 C-451 235,0 185,0 4,0 60
631 C-452 620,0 320,0 6,0 60
632 C-453 566,0 180,0 6,0 60
633 C-454 540,0 390,0 4,0 60
634 C-455 386,0 292,0 5,0 60
635 C-456 880,0 730,0 5,0 60
636 C-457 720,0 636,0 6,0 60
637 C-458 725,0 500,0 11,0 60
638 C-459 590,0 488,0 9,0 60
639 C-460 925,0 715,0 15,0 60
640 C-461 610,0 535,0 7,0 60
641 C-462 1460,0 1180,0 16,0 22
642 C-463 2750,0 1980,0 16,0 10
643 C-464 1350,0 860,0 12,0 29
644 C-465 530,0 400,0 20,0 80
645 C-466 940,0 500,0 10,0 30
646 C-467 614,0 534,0 5,0 60
647 C-468 18 480,0 320,0 18,0 60
648 20 480,0 320,0 20,0 60
649 С-469 1050,0 570,0 8,0 30
650 С-470 1500,0 1142,0 20,0 34
651 C-471 240,0 90,0 5,0 90
652 C-472 480,0 385,0 10,0 60
653 C-473 615,0 320,0 9,0 58
654 C-474 705,0 365,0 9,0 58
655 C-475 550,0 466,0 6,0 60
656 C-476 530,0 470,0 5,0 60
657 C-477 435,0 251,0 5,0 90
658 C-478 319,0 181,0 5,0 90
659 C-479 446,0 384,0 4,0 60
660 C-480 700,0 460,0 10,0 45
661 C-481 700,0 480,0 10,0 45
662 C-482 444,0 384,0 4,0 60
663 C-483 534,0 474,0 4,0 60
664 C-484 620,0 534,0 5,0 60
665 C-485 725,0 500,0 12,0 45
666 C-486 1460,0 1220,0 8,0 36
667 C-487 1190,0 970,0 10,0 15
668 C-488 650,0 310,0 9,0 90
669 C-489 700,0 540,0 8,0 60
670 C-490 1312,0 970,0 8,0 30
671 C-491 513,0 426,0 10,0 120
672 C-492 455,0 330,0 5,0 90
673 C-493 444,0 372,0 4,0 60
674 C-494 1500,0 960,0 10,0 60
675 C-495 1440,0 800,0 12,0 14
676 C-496 458,0 315,0 6,0 60
677 C-497 675,0 400,0 8,0 72
678 C-498 1750,0 1455,0 20,0 30
679 C-499 495,0 406,0 5,0 30
680 C-500 740,0 610,0 8,0 60
681 C-501 260,0 210,0 8,0 72
682 C-502 540,0 360,0 10,0 60

Сектор фрикционный артикул Д-019

Эскиз фрикционного сектора артикула Д-019
Таблица размеров для фрикционного сектора с артикулом Д-019
№ Артикул B R1 R2 Угол
1 Д-019 на заказ 194,0 316 85

Сектор фрикционный H-001

Эскиз фрикционного сектора H-001
Таблица размеров для фрикционного сектора H-001
№ Артикул А R1 R2 В Тип накладки (модель пресса)
1 H-001 415,0 732,6 353 на заказ PS 70-01.03A (Буровая лебедка JC50-1)

Фрикционная пластина

Эскиз фрикционной платины
Таблица размеров для фрикционных пластин

Параметр B может быть любым, на заказ!

Поиск по параметрам Длина: Ширина: В:
№ Артикул Длина Ширина В
1 П-001 3 700 500 3
2 4 700 500 4
3 5 700 500 5
4 6 700 500 6
5 7 700 500 7
6 8 700 500 8
7 10 700 500 10
8 12 700 500 12
9 14 700 500 14
10 15 700 500 15
11 16 700 500 16
12 18 700 500 18
13 20 700 500 20
14 24 700 500 24
15 25 700 500 25
16 28 700 500 28
17 30 700 500 30
18 35 700 500 35
19 38 700 500 38
20 40 700 500 40
21 45 700 500 45
22 50 700 500 50
23 60 700 500 60
24 63 700 500 63
25 70 700 500 70
26 80 700 500 80
27 П-002 2 250 100 2
28 10 250 100 10
29 П-003 400 150 38
30 П-004 107 15 5
31 П-005 10 200 100 10
32 15 200 100 15
33 П-006 5 400 140 5
34 35 400 140 35
35 38 400 140 38
36 40 400 140 40
37 П-007 50 50 30
38 П-008 5 100 50 5
39 8 100 50 8
40 12 100 50 12
41 П-009 240 140 35
42 П-010 80 45 50
43 П-011 51 51 38
44 П-012 100 65 10
45 П-013 160 76 12
46 П-014 250 110 10
47 П-015 225 160 35
48 П-016 420 200 10
49 П-017 250 180 20
50 П-018 266 152 25
51 П-019 266 203 25
52 П-020 266 254 25
53 П-021 5 460 400 5
54 10 460 400 10
55 45 460 400 45
56 70 460 400 70
57 П-022 110 90 32
58 П-023 240 380 32
59 П-024 400 360 20
60 П-025 220 60 5
61 П-026 38 400 280 38
62 40 400 280 40
63 П-027 300 40 40
64 П-028 215 110 38
65 П-029 420 160 5
66 П-030 400 290 40
67 П-031 6 100 100 6
68 8 100 100 8
69 П-032 8 150 150 8
70 30 150 150 30
71 П-033 3 200 200 3
72 5 200 200 5
73 6 200 200 6
74 8 200 200 8
75 20 200 200 20
76 47 200 200 47
77 П-034 305 245 5
78 П-035 150 100 8
79 П-036 600 500 25
80 П-037 500 140 25
81 П-038 5 230 230 5
82 60 230 230 60
83 П-039 1,5 500 500 2
84 3 500 500 3
85 П-039 4 500 500 4
86 5 500 500 5
87 6 500 500 6
88 7 500 500 7
89 8 500 500 8
90 9 500 500 9
91 10 500 500 10
92 12 500 500 12
93 14 500 500 14
94 15 500 500 15
95 16 500 500 16
96 18 500 500 18
97 20 500 500 20
98 25 500 500 25
99 30 500 500 30
100 40 500 500 40
101 50 500 500 50
102 60 500 500 60
103 П-040 4 400 400 4
104 10 400 400 10
105 14 400 400 14
106 16 400 400 16
107 20 400 400 20
108 22 400 400 22
109 60 400 400 60
110 П-041 5 250 250 5
111 10 250 250 10
112 12 250 250 12
113 П-042 8 67 30 8
114 10 67 30 10
115 П-043 340 140 38
116 П-044 4 300 300 4
117 5 300 300 5
118 6 300 300 6
119 8 300 300 8
120 10 300 300 10
121 12 300 300 12
122 20 300 300 20
123 24 300 300 24
124 35 300 300 35
125 П-045 28 28 15
126 П-046 40 30 10
127 П-047 408 140 10
128 П-048 110 110 20
129 П-050 300 50 50
130 П-051 29 140 65 29
131 30 140 65 30
132 40 140 65 40
133 П-052 700 110 45
134 П-053 120 50 10
135 П-054 63 43 15
136 П-055 60 47 13
137 П-056 54 47 16
138 П-057 63 49 15
139 П-058 62 41 15
140 П-059 4 600 400 4
141 6 600 400 6
142 7 600 400 7
143 25 600 400 25
144 П-060 290 250 30
145 П-061 12 140 90 12
146 30 140 90 30
147 П-062 310 205 30
148 П-063 72 35 6
149 П-064 140 60 30
150 П-065 2 300 100 2
151 7 300 100 7
152 П-066 60 30 5
153 П-067 19 16 5
154 П-068 14 12 3
155 П-069 160 100 4
156 П-070 89 76 40
157 П-071 89 69 40
158 П-072 50 20 5
159 П-073 13 350 115 13
160 14 350 115 14
161 П-074 145 82 28
162 П-075 170 170 4
163 П-076 490 360 38
164 П-077 220 200 47
165 П-078 390 95 70
166 П-079 5 500 300 5
167 40 500 300 40
168 П-080 40 40 30
169 П-081 36 36 25
170 П-082 340 230 60
171 П-083 270 200 60
172 П-083 470 400 4
173 П-084 63 42 18
174 П-085 90 70 12
175 П-086 300 260 5
176 П-087 199 140 38
177 П-088 400 230 30
178 П-089 400 115 30
179 35 400 115 38
180 П-090 82 85 20
181 П-091 70 60 20
182 П-092 105 98 26
183 П-093 140 50 5
184 П-094 5 300 170 5
185 10 300 170 10
186 П-095 13 90 60 13
187 16 90 60 16
188 П-096 340 115 35
189 П-097 200 150 60
190 П-098 38 200 140 38
191 40 200 140 40
192 П-099 500 400 34
193 П-100 200 110 35
194 П-101 280 140 35
195 П-102 350 110 8
196 П-103 500 350 4
197 П-104 240 160 30
198 П-105 500 100 10
199 П-106 175 60 30
200 П-107 165 76 12
201 П-108 300 200 20
202 П-109 10 400 200 10
203 20 400 200 20
204 П-110 4 120 30 4
205 5 120 30 5
206 П-111 120 120 3
207 П-112 230 140 38
208 П-113 90 40 6
209 П-114 100 30 4
210 П-115 130 103 5
211 П-116 140 32 6
212 П-117 315 245 4
213 П-118 195 110 35
214 П-119 150 50 20
215 П-120 110 80 50
216 П-121 150 60 40
217 П-122 200 160 25
218 П-123 98 62 3
219 П-124 700 190 10
220 П-125 270 270 70
221 П-126 63 45 14
222 П-127 700 50 7

Колодка фрикционная тормозная 4020.81.100-1 СБ для буровой лебедки ЛБУ 1200 К

Вкладыш фрикционный Матрешка

Эскиз вкладыша фрикционного Матрешка
Таблица размеров для вкладыша фрикционного Матрешка
№ Артикул А С В Тип накладки (модель пресса)
1 ВМ-001 219 178 на заказ 47 312 101 21 003 Innochenti-300 (Муфта)
2 ВМ-002 153 127 на заказ 47 312 101 21 002 Innochenti-300 (Тормоз)
3 ВМ-003 205 170 на заказ 4-062-41-03-0116-1 Innochenti-300 (Тормоз)
3 ВМ-004 253 170 на заказ 4-062-41-01-0103-1 Innochenti-300 (Тормоз)

Фрикционное кольцо

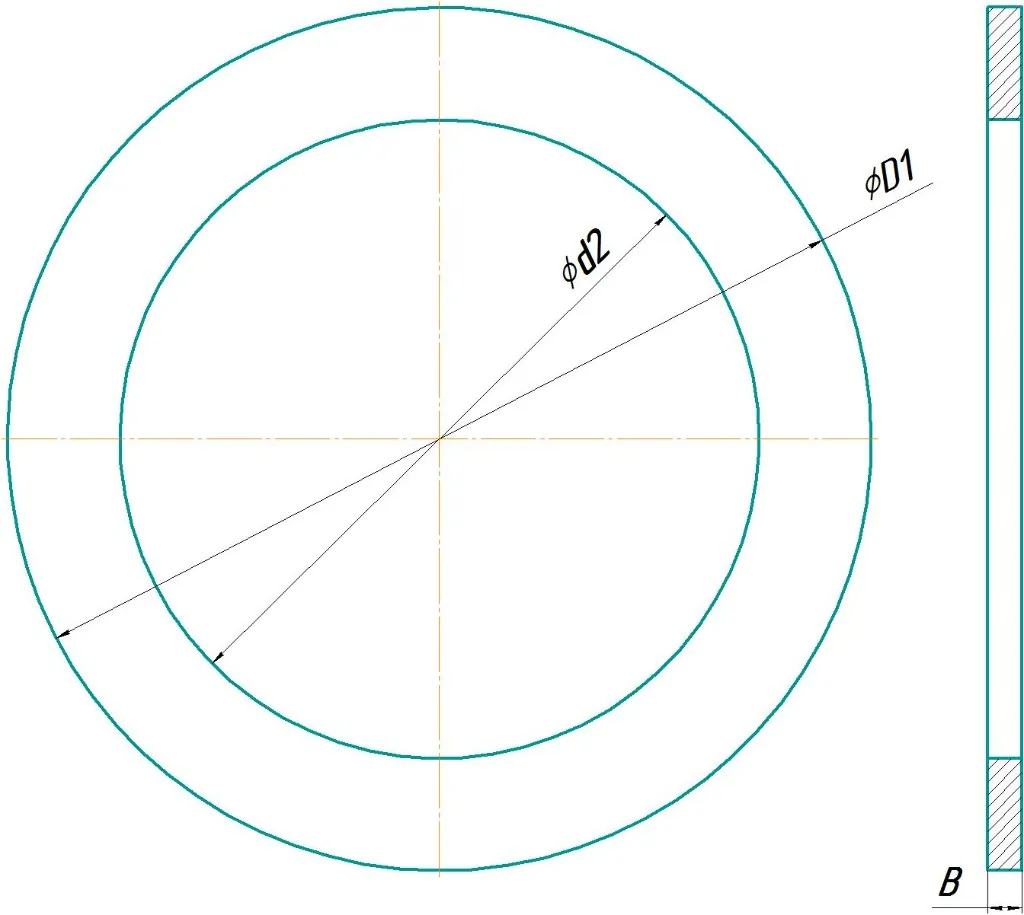

Эскиз фрикционного кольца
Таблица размеров для фрикционного кольца

Параметр B может быть любым, на заказ!

Поиск по параметрам D1: d2: В:
№ Артикул D1 d2 B
1 К-001 4 300 190,0 4,0
2 6 300 190,0 6,0
3 К-002 5 370 250,0 5,0
4 6 370 250,0 6,0
5 К-003 890 400,0 5,5
6 К-004 684 372,0 5,5
7 К-005 6 300 100,0 6,0
8 10 300 100,0 10,0
9 13 300 100,0 13,0
10 К-006 100 24,0 5,0
11 К-007 420 390,0 5,0
12 К-008 76 48,0 5,0
13 К-009 260 136,0 5,0
14 К-010 748 520,0 12,0
15 К-011 4 355 295,0 4,0
16 5 355 295,0 5,0
17 К-012 235 173,0 10,0
18 К-013 4 225 142,0 4,0
19 5 225 142,0 5,0
20 К-014 5 345 245,0 5,0
21 6 345 245,0 6,0
22 7 345 245,0 7,0
23 20 345 245,0 20,0
24 К-015 360 285,0 5,0
25 К-016 508 178,0 6,5
26 К-017 4 360 290,0 4,0
27 5 360 290,0 5,0
28 6 360 290,0 6,0
29 К-018 4 295 255,0 4,0
30 5 295 255,0 5,0
31 8 295 255,0 8,0
32 К-019 282 150,0 10,0
33 К-020 3,5 205 150,0 3,5
34 8 205 150,0 8,0
35 К-021 262 215,0 5,0
36 К-022 280 150,0 4,0
37 К-023 134 97,0 5,0
38 К-024 124 90,0 5,0
39 К-025 120 55,0 6,0
40 К-026 70 30,0 4,0
41 К-027 180 78,0 10,0
42 К-028 316 208,0 6,0
43 К-029 6 380 285,0 6,0
44 10 380 285,0 10,0
45 К-030 445 380,0 5,0
46 К-031 5 140 80,0 5,0
47 7 140 80,0 7,0
48 10 140 80,0 10,0
49 К-032 5 250 200,0 5,0
50 8 250 200,0 8,0
51 10 250 200,0 10,0
52 К-033 4 126 82,0 4,0
53 5 126 82,0 5,0
54 К-034 4 150 94,0 4,0
55 6 150 94,0 6,0
56 К-035 5 200 136,0 5,0
57 10 200 136,0 10,0
58 К-036 100 0,0 10,0
59 К-037 4 260 220,0 4,0
60 5 260 220,0 5,0
61 6 260 220,0 6,0
62 К-038 292 252,0 4,0
63 К-039 4 150 80,0 4,0
64 5 150 80,0 5,0
65 К-040 295 255,0 4,5
66 К-041 176 10,0 5,0
67 К-042 406 228,0 7,0
68 К-043 185 90,0 7,0
69 К-044 400 280,0 5,0
70 К-045 4,5 225 140,0 4,5
71 5 225 140,0 5,0
72 6 225 140,0 6,0
73 К-046 4 90 60,0 4,0
74 5 90 60,0 4,5
75 К-047 4 350 290,0 4,0
76 5 350 290,0 5,0
77 К-048 100 44,0 4,0
78 К-049 190 130,0 5,0
79 К-050 402 130,0 4,0
80 К-051 340 270,0 6,0
81 К-052 5 220 160,0 5,0
82 9 220 160,0 9,0
83 К-053 280 180,0 8,0
84 К-054 4 230 150,0 4,0
85 6 230 150,0 6,0
86 10 230 150,0 10,0
87 К-055 360 140,0 5,0
88 К-056 (4,5) 180 100,0 4,5
89 5 180 100,0 5,0
90 6 180 100,0 6,0
91 7 180 100,0 7,0
92 8 180 100,0 8,0
93 10 180 100,0 10,0
94 К-057 5 350 200,0 5,0
95 8 350 200,0 8,0
96 12 350 200,0 12,0
97 К-058 133 102,0 5,0
98 К-059 62 47,0 5,0
99 К-060 4 150 90,0 4,0
100 5 150 90,0 5,0
101 К-061 150 20,0 5,0
102 К-062 140 72,0 4,0
103 К-063 3,5 187 127,0 3,5
104 4 187 127,0 4,0
105 К-064 235 185,0 4,0
106 К-065 310 228,0 8,0
107 К-066 293 235,0 4,0
108 К-067 233 140,0 4,0
109 К-068 85 45,0 4,0
110 К-069 60 30,3 4,0
111 К-070 146 95,0 6,0
112 К-071 120 0,0 4,0
113 К-072 5 125 60,0 5,0
114 8 125 60,0 8,0
115 К-073 4 65 12,0 4,0
116 10 65 12,0 10,0
117 К-074 360 225,0 8,0
118 К-075 5 260 190,0 5,0
119 8 260 190,0 8,0
120 К-076 6 200 150,0 6,0
121 10 200 150,0 10,0
122 К-077 5 280 200,0 5,0
123 6 280 200,0 6,0
124 К-078 5 170 100,0 5,0
125 6 170 100,0 6,0
126 К-079 5 500 350,0 5,0
127 8 500 350,0 8,0
128 К-080 4 200 100,0 4,0
129 5 200 100,0 5,0
130 6 200 100,0 6,0
131 10 200 100,0 10,0
132 К-081 4 80 40,0 4,0
133 5 80 40,0 5,0
134 10 80 40,0 10,0
135 К-082 130 65,0 4,0
136 К-083 230 100,0 10,0
137 К-084 480 348,0 6,0
138 К-085 450 240,0 5,0
139 К-086 195 100,0 6,0
140 К-087 80 74,0 15,0
141 К-088 75 40,0 8,0
142 К-089 90 40,0 8,0
143 К-090 4 150 100,0 4,0
144 4,5 150 100,0 4,5
145 5 150 100,0 5,0
146 6 150 100,0 6,0
147 20 150 100,0 20,0
148 К-091 5 130 90,0 5,0
149 6 130 90,0 6,0
150 К-092 185 145,0 6,0
151 К-093 265 190,0 7,0
152 К-094 240 190,0 5,0
153 К-095 4 190 110,0 4,0
154 5 190 110,0 5,0
155 6 190 110,0 6,0
156 К-096 4 230 120,0 4,0
157 10 230 120,0 10,0
158 К-097 4 270 200,0 4,0
159 6 270 200,0 6,0
160 К-098 81 56,0 4,0
161 К-099 119 76,0 4,0
162 К-100 155 106,0 4,0
163 К-101 171 106,0 5,0
164 К-102 254 161,0 5,0
165 К-103 305 205,0 5,0
166 К-104 5 200 130,0 5,0
167 6 200 130,0 6,0
168 К-105 180 60,0 5,0
169 К-106 275 160,0 6,0
170 К-107 225 160,0 6,0
171 К-108 4 175 130,0 4,0
172 6 175 130,0 6,0
173 К-109 4 115 70,0 4,0
174 5 115 70,0 5,0
175 К-110 6 380 230,0 6,0
176 10 380 230,0 10,0
177 К-111 3 300 250,0 3,0
178 4 300 250,0 4,0
179 5 300 250,0 5,0
180 7 300 250,0 7,0
181 К-112 455 385,0 6,0
182 К-113 440 385,0 6,0
183 К-114 360 230,0 6,0
184 К-115 460 370,0 6,0
185 К-116 5 370 290,0 5,0
186 6 370 290,0 6,0
187 К-117 265 210,0 5,0
188 К-118 80 64,0 4,0
189 К-119 146 80,0 7,0
190 К-120 230 63,0 3,0
191 К-121 384 246,0 16,0
192 К-122 4 120 60,0 4,0
193 5 120 60,0 4,5
194 6 120 60,0 6,0
195 8 120 60,0 8,0
196 К-123 65 44,5 4,0
197 К-124 85 52,0 4,0
198 К-125 4 220 150,0 4,0
199 6 220 150,0 6,0
200 К-126 175 65,0 4,0
201 К-127 46 12,0 4,0
202 К-128 190 120,0 7,0
203 К-129 83 53,0 4,0
204 К-130 103 70,0 4,0
205 К-131 152 92,0 4,0
206 К-132 355 220,0 4,0
207 К-133 200 105,0 4,0
208 К-134 916 500,0 5,0
209 К-135 150 91,0 3,0
210 К-136 4 180 125,0 4,0
211 5 180 125,0 5,0
212 10 180 125,0 10,0
213 К-137 130 82,0 5,0
214 К-138 4,5 270 210,0 4,5
215 6 270 210,0 6,0
216 8 270 210,0 8,0
217 К-139 165 93,0 4,0
218 К-140 231 109,0 4,0
219 К-141 240 156,0 4,0
220 К-142 362 196,0 4,0
221 К-143 135 75,0 55,0
222 К-144 145 95,0 8,0
223 К-145 132 82,0 4,0
224 К-146 225 130,0 5,0
225 К-147 70 38,0 4,0
226 К-148 4 140 85,0 4,0
227 5 140 85,0 5,0
228 6 140 85,0 6,0
229 К-149 178 122,0 5,0
230 К-150 6 255 150,0 6,0
231 8 255 150,0 8,0
232 К-151 250 170,0 12,0
233 К-152 147 110,0 5,0
234 К-153 770 630,0 10,0
235 К-154 116 80,0 4,0
236 К-155 65 38,0 4,0
237 К-156 62 40,0 4,0
238 К-157 74 42,0 4,0
239 К-158 305 250,0 4,0
240 К-159 4 115 90,0 4,0
241 5 115 90,0 5,0
242 К-160 4 280 164,0 4,0
243 5 280 164,0 5,0
244 К-161 115 74,0 5,0
245 К-162 445 385,0 5,0
246 К-163 356 237,0 5,0
247 К-164 300 165,0 5,0
248 К-165 460 310,0 5,0
249 К-166 5 300 240,0 5,0
250 6 300 240,0 6,0
251 12 300 240,0 12,0
252 К-167 375 290,0 8,0
253 К-168 50 35,0 7,0
254 К-169 180 122,0 5,0
255 К-170 92 37,0 5,0
256 К-171 345 210,0 8,0
257 К-172 300 140,0 6,0
258 К-173 123 85,0 8,0
259 К-174 200 125,0 5,0
260 К-175 310 215,0 5,0
261 К-176 492 408,0 6,0
262 К-177 430 370,0 6,0
263 К-178 235 160,0 5,0
264 К-179 455 285,0 5,0
265 К-180 3 50 20,0 3,0
266 4 50 20,0 3,5
267 5 50 20,0 4,0
268 К-181 120 40,0 4,0
269 К-182 340 250,0 8,0
270 К-183 7 100 35,0 7,0
271 16 100 35,0 16,0
272 К-184 160 115,0 5,0
273 К-185 230 183,0 5,0
274 К-186 127 82,0 3,0
275 К-187 230 180,0 15,0
276 К-188 180 140,0 10,0
277 К-189 55 45,0 15,0
278 К-190 127 70,0 5,0
279 К-191 4 225 150,5 4,0
280 5 225 150,5 6,0
281 К-192 29 16,0 5,0
282 К-193 460 330,0 23,0
283 К-194 133 94,0 4,0
284 К-195 180 90,0 6,0
285 К-196 242 146,0 4,0
286 К-197 4,5 197 126,0 4,5
287 5 197 126,0 5,0
288 К-198 437 312,0 8,0
289 К-199 92 43,0 4,0
290 К-200 65 48,0 4,5
291 К-201 60 31,0 4,5
292 К-202 100 49,0 6,0
293 К-203 250 180,0 4,5
294 К-204 159 80,0 6,0
295 К-205 3 68 44,0 3,0
296 22 68 44,0 22,0
297 К-206 7 120 64,0 7,0
298 9 120 64,0 9,0
299 К-207 4 300 200,0 4,0
300 5 300 200,0 5,0
301 К-208 145 100,0 10,0
302 К-209 220 90,0 12,0
303 К-210 403 230,0 5,0
304 К-211 300 0,0 12,0
305 К-212 200 0,0 12,0
306 К-213 230 165,0 6,0
307 К-214 300 125,0 4,0
308 К-215 6 200 120,0 6,0
309 8 200 120,0 8,0
310 К-216 5 100 61,0 5,0
311 6 100 61,0 6,0
312 К-217 59 32,0 5,0
313 К-218 485 385,0 16,0
314 К-219 145 93,0 4,0
315 К-220 158 107,0 4,0
316 К-221 260 0,0 8,0
317 К-222 63 0,0 10,0
318 К-223 127 0,0 57,0
319 К-224 80 30,0 6,0
320 К-225 190 132,0 4,0
321 К-226 79 59,0 4,0
322 К-227 300 114,0 10,0
323 К-228 50 30,0 4,0
324 К-229 140 100,0 5,0
325 К-230 200 140,0 5,0
326 К-231 6 255 160,0 6,0
327 20 255 160,0 20,0
328 К-232 270 150,0 6,0
329 К-233 215 101,0 5,0
330 К-234 4 300 230,0 4,0
331 6 300 230,0 6,0
332 К-235 5 360 240,0 5,0
333 6 360 240,0 6,0
334 К-236 144 120,0 8,0
335 К-237 4 170 80,0 4,0
336 5 170 80,0 5,0
337 8 170 80,0 8,0
338 30 170 80,0 30,0
339 К-238 4 260 149,0 4,0
340 6 260 149,0 6,0
341 К-239 117 80,0 4,0
342 К-240 340 260,0 5,0
343 К-241 5 220 140,0 5,0
344 10 220 140,0 10,0
345 К-242 110 90,0 32,0
346 К-243 4 152 106,0 4,0
347 6 152 106,0 6,0
348 К-244 3 129 94,0 3,0
349 4 129 94,0 4,0
350 6 129 94,0 6,0
351 К-245 350 100,0 6,0
352 К-246 50 25,0 4,0
353 К-247 470 390,0 6,0
354 К-248 370 293,0 5,0
355 К-249 190 125,0 8,0
356 К-250 202 130,0 4,0
357 К-251 248 154,0 4,0
358 К-252 115 50,0 6,0
359 К-253 465 385,0 4,0
360 К-254 380 310,0 4,0
361 К-255 3 119 96,0 3,0
362 5 119 96,0 4,5
363 К-256 5 350 300,0 5,0
364 6 350 300,0 6,0
365 К-257 60 20,0 4,0
366 К-258 175 120,0 55,0
367 К-259 4 180 130,0 4,0
368 5 180 130,0 5,0
369 6 180 130,0 6,0
370 К-260 320 250,0 4,0
371 6 320 250,0 6,0
372 К-261 205 135,0 2,9
373 К-262 213 137,0 3,8
374 К-263 155 110,0 4,0
375 К-264 4 150 105,0 4,0
376 5 150 105,0 5,0
377 6 150 105,0 6,0
378 К-265 130 80,0 5,0
379 К-266 5 300 210,0 5,0
380 6 300 210,0 6,0
381 К-267 360 236,0 5,0
382 К-268 4 320 210,0 4,0
383 5 320 210,0 5,0
384 К-269 3 180 120,0 3,0
385 5 180 120,0 5,0
386 8 180 120,0 8,0
387 К-270 330 250,0 6,0
388 К-271 104 62,0 6,0
389 К-272 240 120,0 5,0
390 К-273 239 165,0 4,5
391 К-274 274 85,0 5,0
392 К-275 50 33,0 3,0
393 К-276 75 60,0 3,0
394 К-277 180 105,0 5,0
395 К-278 228 208,0 13,0
396 К-279 68 36,0 3,0
397 К-280 458 250,0 5,0
398 К-281 400 120,0 10,0
399 К-282 330 190,0 10,0
400 К-283 200 160,0 8,0
401 К-284 345 295,0 4,0
402 К-285 310 155,0 11,0
403 К-286 198 170,0 8,0
404 К-287 199 127,0 4,0
405 К-288 199 131,0 4,0
406 К-289 4 450 380,0 4,0
407 6 450 380,0 6,0
408 К-290 100 55,0 28,0
409 К-291 190 155,0 4,0
410 К-292 100 26,0 4,0
411 К-293 4 124 80,0 4,0
412 5 124 80,0 5,0
413 К-294 137 103,0 4,0
414 К-295 82 44,0 2,0
415 К-296 146 101,0 5,5
416 К-297 57 31,0 40,0
417 К-298 445 200,0 4,5
418 К-299 202 136,0 11,0
419 К-300 3 145 85,0 3,0
420 5 145 85,0 5,0
421 К-301 3,8 175 100,0 3,8
422 4 175 100,0 4,0
423 К-302 126 94,0 4,0
424 К-303 379 240,0 17,0
425 К-304 136 96,0 5,0
426 К-305 150 106,0 5,0
427 К-306 4 160 97,0 4,0
428 8 160 97,0 8,0
429 К-307 45 32,0 5,0
430 К-308 198 170,0 8,0
431 К-309 130 79,0 4,0
432 К-310 255 195,0 6,0
433 К-311 2 100 60,0 2,0
434 3 100 60,0 3,0
435 6 100 60,0 6,0
436 К-312 275 250,0 4,0
437 К-313 4 450 390,0 4,0
438 5 450 390,0 5,0
439 6 450 390,0 6,0
440 К-314 125 74,0 5,0
441 К-315 200 155,0 30,0
442 К-316 450 320,0 8,0
443 К-317 355 285,0 6,0
444 К-318 110 72,5 3,0
445 К-319 140 115,0 25,0
446 К-320 4 120 70,0 4,0
447 7 120 70,0 7,0
448 К-321 320 220,0 6,0
449 К-322 31 23,0 3,0
450 К-323 4 240 100,0 4,0
451 5 240 100,0 5,0
452 К-324 4 115 72,0 4,0
453 5 115 72,0 5,0
454 К-325 4 160 90,0 4,0
455 6 160 90,0 6,0
456 К-326 295 275,0 5,0
457 К-327 4 445 240,0 4,0
458 8 445 240,0 8,0
459 К-328 146 85,0 6,0
460 К-329 335 200,0 10,0
461 К-330 130 70,0 5,0
462 К-331 130 96,0 4,0
463 К-332 152 101,0 5,0
464 К-333 52 30,0 50,0
465 К-334 120 24,0 4,0
466 К-335 168 24,0 4,0
467 К-336 325 250,0 5,0
468 К-337 260 205,0 5,0
469 К-338 350 250,0 7,0
470 К-339 5 230 160,0 5,0
471 6 230 160,0 6,0
472 К-340 90 43,0 5,0
473 К-341 325 240,0 5,0
474 К-342 129 45,0 6,0
475 К-343 458 315,0 6,0
476 К-344 500 380,0 8,0
477 К-345 380 286,0 7,0
478 К-346 72 22,0 4,0
479 К-347 90 50,0 3,0
480 К-348 4 275 200,0 4,0
481 6 275 200,0 6,0
482 К-349 285 170,0 5,0
483 К-350 310 210,0 6,0
484 К-351 143 63,0 4,0
485 К-352 250 140,0 8,0
486 К-353 340 240,0 6,0
487 К-354 480 420,0 6,0
488 К-355 101 40,0 24,0
489 К-356 120 65,0 8,0
490 К-357 478 308,0 4,0
491 К-358 238 106,0 10,0
492 К-359 4 165 115,0 4,0
493 5 165 115,0 5,0
494 К-360 6 480 360,0 6,0
495 8 480 360,0 8,0
496 К-361 310 205,0 8,0
497 К-362 150 114,0 4,0
498 К-363 150 110,0 5,0
499 К-364 95 73,0 3,0
500 К-365 150 120,0 6,0
501 К-366 149 80,0 7,0
502 К-367 5 400 320,0 5,0
503 6 400 320,0 6,0
504 К-368 107 70,0 4,0
505 К-369 220 135,0 5,0
506 К-370 160 85,0 4,0
507 К-371 3 115 75,0 3,0
508 4 115 75,0 4,0
509 К-372 125 90,0 4,0
510 К-373 135 100,0 4,0
511 К-374 4 180 135,0 4,0
512 6 180 135,0 6,0
513 К-375 260 109,0 5,0
514 К-376 112 65,0 2,0
515 4 112 65,0 4,0
516 К-377 4 160 86,0 4,0
517 5 160 86,0 5,0
518 К-378 217 160,0 6,0
519 К-379 355 255,0 8,0
520 К-380 4 385 285,0 4,0
521 5 385 285,0 4,5
522 К-381 350 205,0 8,0
523 К-382 297 250,0 5,0
524 К-383 123 92,0 4,0
525 К-384 174 133,0 6,0
526 К-385 5 140 70,0 5,0
527 8 140 70,0 8,0
528 К-386 92 58,0 20,0
529 К-387 100 54,0 2,0
530 К-388 430 315,0 6,0
531 К-389 237 180,0 4,0
532 К-390 86 65,0 20,0
533 К-391 175 125,0 3,0
534 К-392 88 43,0 3,0
535 К-393 80 48,0 4,0
536 К-394 102 70,0 4,0
537 К-395 170 112,0 4,0
538 К-396 226 140,0 5,0
539 К-397 316 228,0 5,0
540 К-398 5 345 200,0 5,0
541 6 345 200,0 6,0
542 К-399 185 126,0 4,0
543 К-400 12 203 135,0 12,0
544 14 203 135,0 14,0
545 15 203 135,0 15,0
546 К-401 270 203,0 6,0
547 К-402 95 68,0 5,0
548 К-403 4 455 380,0 4,0
549 6 455 380,0 6,0
550 К-404 400 161,0 10,0
551 К-405 4 179 120,0 4,0
552 5 179 120,0 5,0
553 К-406 145 77,0 4,5
554 К-407 418 348,0 4,0
555 К-408 5 115 65,0 5,0
556 12 115 65,0 12,0
557 15 115 65,0 15,0
558 К-409 205 130,0 5,0
559 К-410 120 88,0 3,5
560 К-411 155 105,0 5,0
561 К-412 5 150 95,0 5,0
562 6 150 95,0 6,0
563 К-413 90 70,0 8,0
564 12 90 70,0 12,0
565 К-414 2,2 100 70,0 2,2
566 4 100 70,0 4,0
567 К-415 4 250 155,0 4,0
568 5 250 155,0 5,0
569 К-416 250 150,0 6,0
570 К-417 350 265,0 8,0
571 К-418 88 63,0 3,0
572 К-419 200 152,0 5,0
573 К-420 163 107,0 4,0
574 К-421 69 54,0 8,5
575 К-422 107 75,0 3,0
576 К-423 4 280 160,0 4,0
577 8 280 160,0 8,0
578 К-424 275 165,0 5,0
579 К-425 260 210,0 6,0
580 К-426 4 110 65,0 4,0
581 8 110 65,0 8,0
582 К-427 224 150,0 4,0
583 К-428 70 36,0 4,0
584 К-429 270 180,0 5,0
585 К-430 280 165,0 4,0
586 К-431 3 160 100,0 3,0
587 4 160 100,0 4,0
588 К-432 420 320,0 5,0
589 К-433 169 102,0 5,0
590 К-434 221 138,0 10,0
591 К-435 120 85,0 5,0
592 К-436 5 142 100,0 5,0
593 6 142 100,0 6,0
594 К-437 65 45,0 6,0
595 К-438 82 58,0 15,0
596 К-439 11 480 320,0 11,0
597 18 480 320,0 18,0
598 К-440 190 115,0 5,0
599 К-441 475 333,0 10,0
600 К-442 136 86,0 5,0
601 К-443 230 148,0 5,0
602 К-444 4 215 130,0 4,0
603 5 215 130,0 5,0
604 К-445 111 57,0 8,0
605 К-446 255 200,0 10,0
606 К-447 185 130,0 5,0
607 К-448 175 140,0 10,0
608 К-449 408 204,0 6,0
609 К-450 8 165 105,0 8,0
610 15 165 105,0 15,0
611 К-451 150 48,0 12,0
612 К-452 4 230 140,0 4,0
613 6 230 140,0 6,0
614 К-453 230 90,0 6,0
615 К-454 225 155,0 5,0
616 К-455 325 225,0 6,0
617 К-456 145 80,0 5,0
618 К-457 255 115,0 5,0
619 К-458 4 140 75,0 4,0
620 5 140 75,0 5,0
621 К-459 88 40,0 5,0
622 К-460 240 180,0 5,0
623 К-461 120 74,0 6,0
624 К-462 328 241,0 10,0
625 К-463 4 100 45,0 4,0
626 5 100 45,0 5,0
627 К-464 110 62,0 8,0
628 К-465 245 180,0 5,0
629 К-466 362 288,0 6,0
630 К-467 200 117,0 6,0
631 К-468 129 93,0 4,0
632 К-469 130 110,0 4,0
633 К-470 160 125,0 4,0
634 К-471 4 310 250,0 4,0
635 5 310 250,0 5,0
636 К-472 450 280,0 9,0
637 К-473 235 155,0 12,0
638 К-474 162 86,0 5,0
639 К-475 376 250,0 12,0
640 К-476 500 250,0 35,0
641 К-477 450 385,0 5,0
642 К-478 400 200,0 5,0
643 К-479 330 120,0 12,0
644 К-480 83 45,0 3,0
645 К-481 140 90,0 8,0
646 К-482 350 120,0 16,0
647 К-483 284 224,0 4,0
648 К-484 157 100,0 3,0
649 К-485 240 165,0 6,0
650 К-486 162 85,0 3,5
651 К-487 175 85,0 5,0
652 К-488 5 460 380,0 5,0
653 6 460 380,0 5,0
654 К-489 360 295,0 6,0
655 К-490 240 160,0 5,0
656 К-491 152 88,0 6,0
657 К-492 215 140,0 4,0
658 К-493 420 380,0 4,0
659 К-494 4 470 430,0 4,0
660 6 470 430,0 6,0
661 8 470 430,0 8,0
662 К-495 416 268,0 6,0
663 К-496 180 96,0 4,0
664 К-497 130 95,0 40,0
665 К-498 460 390,0 5,0
666 К-499 244 200,0 9,0
667 К-500 75 42,0 4,0
668 К-501 240 135,0 5,0
669 К-502 315 185,0 8,0
670 К-503 265 220,0 6,0
671 К-504 122 70,0 3,0
672 К-505 420 270,0 5,0
673 К-506 130 85,0 4,0
674 К-507 7 228 103,0 7,0
675 9 228 103,0 9,0
676 К-508 380 290,0 4,0
677 К-509 180 107,0 5,0
678 К-510 3,2 165 120,0 3,2
679 4 165 120,0 4,0
680 К-511 200 114,0 5,0
681 К-512 470 400,0 4,0
682 К-513 375 225,0 8,0
683 К-514 170 135,0 4,0
684 К-515 460 240,0 5,0
685 К-516 136 80,0 6,0
686 К-517 365 260,0 8,0
687 К-518 170 95,0 4,0
688 К-519 280 170,0 5,0
689 К-520 204 130,0 6,0
690 К-521 386 292,0 5,0
691 К-522 250 160,0 20,0
692 К-523 235 180,0 7,0
693 К-524 400 260,0 8,0
694 К-525 480 365,0 10,0
695 К-526 98 75,0 3,0
696 К-527 86 60,0 3,5
697 К-528 65 42,0 5,0
698 К-529 56 20,0 4,0
699 К-530 77 60,0 2,0
700 К-531 440 380,0 5,0
701 К-532 64 41,5 4,0
702 К-533 4 125 70,0 4,0
703 5 125 70,0 5,0
704 6 125 70,0 6,0
705 К-534 4 142 72,0 4,0
706 6 142 72,0 6,0
707 К-535 110 50,0 4,0
708 К-536 240 150,0 5,0
709 К-537 395 355,0 5,0
710 К-538 445 390,0 5,0
711 К-539 5 290 220,0 5,0
712 6 290 220,0 6,0
713 К-540 60 45,0 7,0
714 К-541 345 242,0 6,0
715 К-542 241 197,0 4,0
716 К-543 235 166,0 6,5
717 К-544 320 240,0 4,0
718 К-545 360 255,0 12,0
719 К-546 247 150,0 4,0
720 К-547 212 150,0 4,0
721 К-548 360 300,0 4,0
722 К-549 378 284,0 8,0
723 К-550 200 190,0 20,0
724 К-551 154 104,0 5,0
725 К-552 175 127,0 5,0
726 К-553 360 280,0 50,0
727 К-554 255 200,0 28,0
728 К-555 115 60,0 3,0
729 К-556 188 156,0 2,0
730 К-557 390 190,0 4,0
731 К-558 390 210,0 4,0
732 К-559 390 355,0 7,0
733 К-560 350 230,0 5,0
734 К-561 550 470,0 5,0
735 К-562 165 100,0 6,0
736 К-563 318 208,0 6,0
737 К-564 340 245,0 6,0
738 К-565 253 151,0 4,0
739 К-566 320 280,0 4,0
740 К-567 360 260,0 8,0
741 К-568 500 430,0 6,0
742 К-569 382 245,0 5,0
743 К-570 195 115,0 4,0
744 К-571 405 334,0 6,0
745 К-572 375 280,0 4,0
746 К-573 73 31,6 3,2
747 К-574 231 166,0 5,0
748 К-575 228 167,0 5,0
749 К-576 124 84,0 4,0
750 К-577 270 220,0 5,0
751 К-578 425 240,0 5,0
752 К-579 340 185,0 4,0
753 К-580 450 350,0 5,0
754 К-581 480 385,0 10,0
755 К-582 325 200,0 4,0
756 К-583 124 86,0 3,0
757 К-584 315 235,0 5,0
758 К-585 500 320,0 6,0
759 К-586 410 240,0 10,0
760 К-587 98 63,0 3,0
761 К-588 400 240,0 15,0
762 К-589 67 35,0 2,5
763 К-590 58 31,0 2,5
764 К-591 113 83,0 10,0
765 К-592 165 121,0 3,0
766 К-593 290 225,0 5,0
767 К-594 210 90,0 5,0
768 К-595 480 330,0 15,0
769 К-596 420 300,0 5,0
770 К-597 270 190,0 6,0
771 К-598 235 190,0 4,0
772 К-599 235 195,0 5,0
773 К-600 144 65,0 10,0
774 К-601 60 30,0 5,0
775 К-602 85 48,0 4,0
776 К-603 138 100,0 6,0
777 К-604 160 140,0 18,5
778 К-605 85 40,0 5,0
779 К-606 360 175,0 5,0
780 К-607 160 80,0 6,0
781 К-608 387 295,0 4,5
782 К-609 150 107,0 14,0
783 К-610 360 170,0 5,0
784 К-611 460 250,0 5,0
785 К-612 360 170,0 5,0
786 К-613 337 273,4 3,0
787 К-614 413 272,0 20,0
788 К-615 87 55,0 5,0
789 К-616 125 78,0 3,0
790 К-617 122 71,0 3,0
791 К-618 92 46,0 8,0
792 К-619 108 55,0 8,0
793 К-620 300 170,0 4,0

Фрикционное кольцо коническое

Таблица размеров для фрикционного кольца конического
№ Артикул B R1 R2 Угол Тип накладки (модель пресса)
1 КК-001 на заказ 51,0 57,0 20 47 311 901 21 003

Нестандартные фрикционные изделия

Таблица размеров для нестандартных фрикционных изделий
№ Артикул А С В D
1 НС-001 308 420 на заказ
2 НС-002 75 260 на заказ
3 НС-003 75 145 на заказ
4 НС-004 145 235 на заказ
5 НС-005 28 40 на заказ 7
6 НС-006 82 72 на заказ 50
7 НС-007 100 43 на заказ
8 НС-008 130 61 на заказ
